10 m Infrared Beam Sensor Photoelectric cell for Automatic door safety

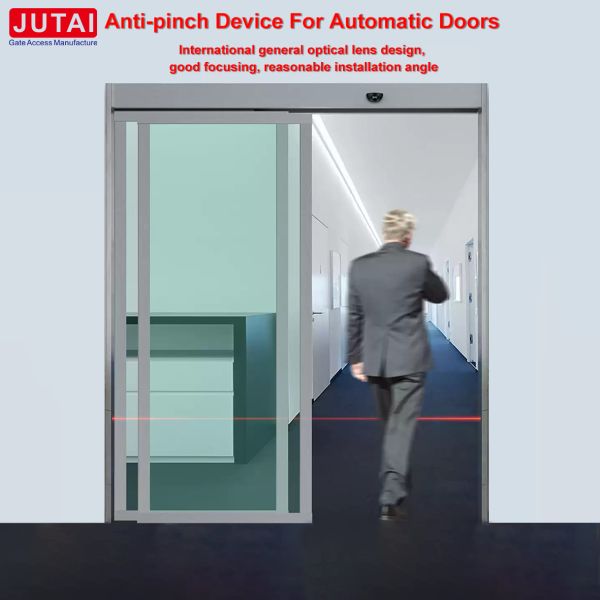

Automatic Door Safety Counter Beam:Used to prevent the door from trapping people or objects when closed.Consists of a pair of infrared emiters and receivers that areare mounted on either side of the door and create an infrared beam. When a person or object passes through the door,this beam is interrupted,triggering the door to stopclosing oropening action to prevent pinching or crushing events.

Wiring Definitions

Note: 1.Power Input AC/DC12-30V

2.If used 1 group beam,need to connect to single beam

3.DIP1 setting single/double beam

4.DIP2 setting range

5.NO/NC Output can selected

Overall Advantage

• Using wiring method,wiring is simple,convenient and accurate.
• Using microcomputer control technology,the system has high integration and strong stability.
• The international general optical lens design has good focusing,reasonable control angle,and is easy to install.
• Using special microcomputer coding transceiver technology,the transmitter and receiver have a long distance and strong anti-interference ability.
• Adopting german receiving filtering,decoding,and amplification systems to effectively solve the problem of resisting natural sunlight interference.
• It has a single or double group of transceiver lenses and separate connection outputs.The connection has good shielding properties and can control one beam of light or two beams of light.
• After light occlusion triggers,the output can flexibly select normally open or normally closed signals.
• Wide voltage input design,valid for both 12-30VAC and DC power input.
• The unique high-precision calculation mode and sunlight filter factor greatly improve the anti-interference ability of the system.

Specific Considerations

• The single beam must be connected to group A,and the double beam must be connected to group AB.

• When installing the electric eye ,the diameter of the drilled hole is 13mm.

• When using a single beam of light,the recommended installation height is 60cm from the ground.

• When using double beams,one set is installed at a height of 30cm from the ground,and the other set is installed at a height of 90cm from the ground.

• The transmitter and receiver has a certain automatic capture range,but please be sure to align it when installing to ensure consistency in the horizontal and vertical directions.

• Normally, you should be careful not to place piles of objects between the transmitter and receiver to avoid blocking and malfunctioning.

• This system has excellent resistance to natural light interference,but when installing,try to avoid direct frontal exposure to strong sunlight to the electric eye.

• Make sure that the height of the safety light from the ground is not less than 20cm.
